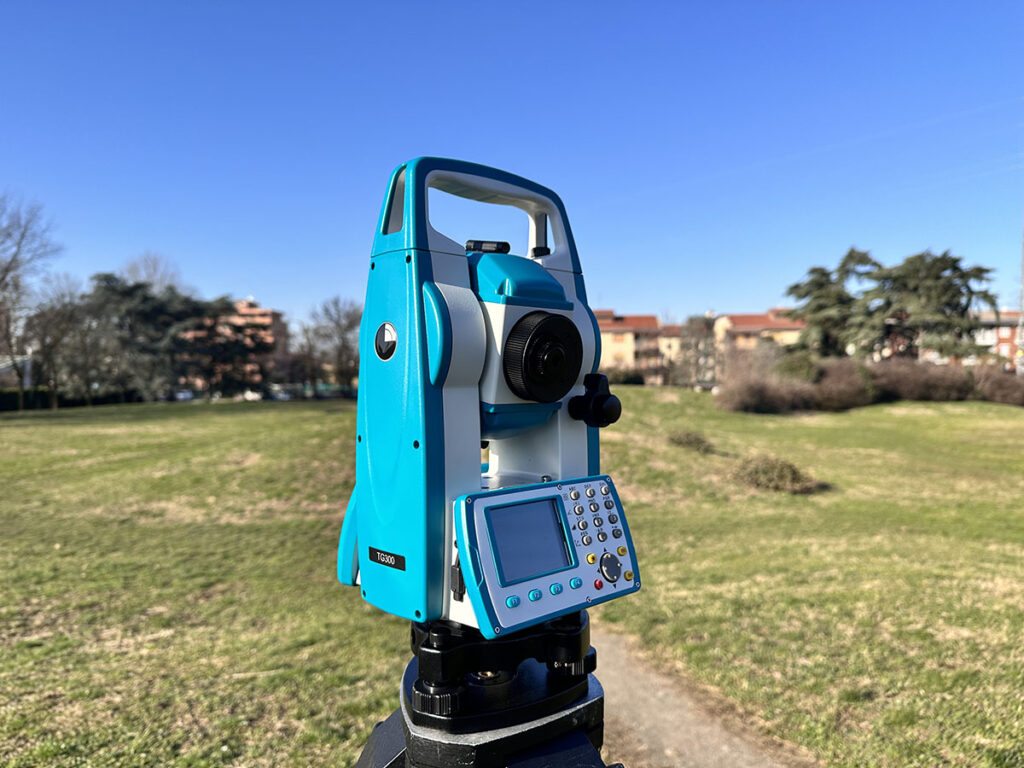

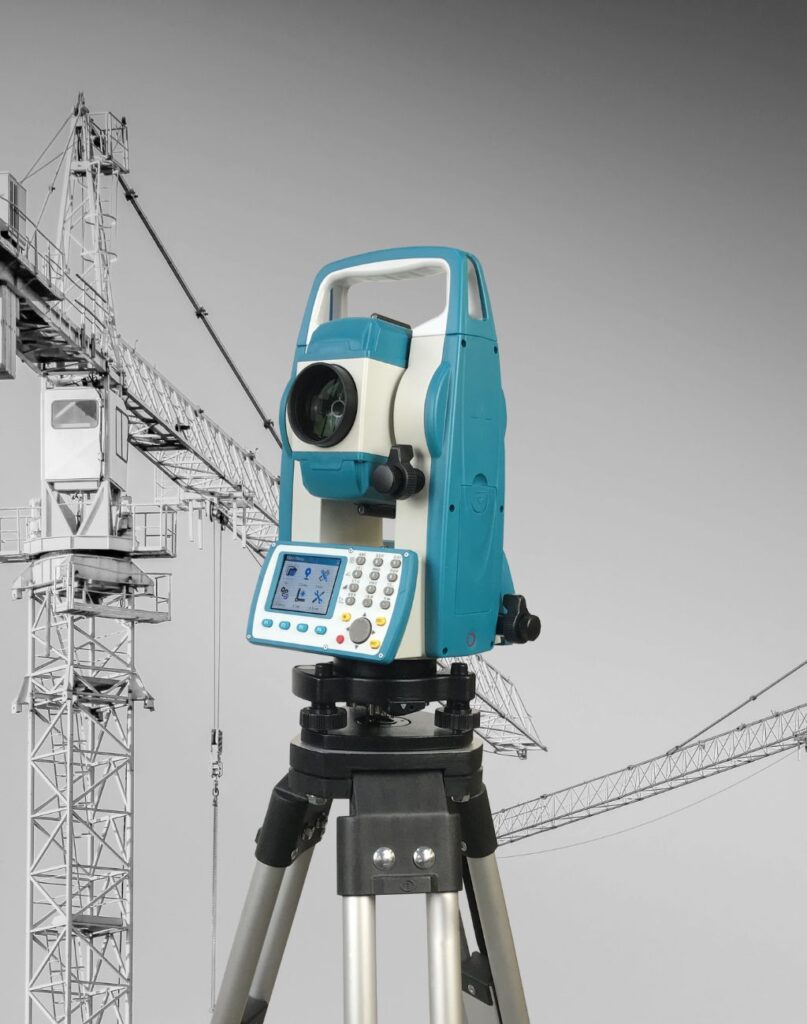

TG300 TOTAL STATION

The TG300 Mechanical Total Station features a high-precision absolute encoder system with 2″ angular accuracy and continuous angle measurement. Its dual-axis optoelectronic compensator provides ±4′ range with 3″ accuracy.

Distance measurement reaches up to 3500 m with a prism, 2000 m with reflector tape, and 600 m in non-prism mode, with accuracy from 2 mm + 2 ppm to 3 mm + 2 ppm.

The TG300 integrates a Class II laser, 2.8″ color display, 24-key keypad, USB and Bluetooth, and stores up to 40,000 points.

Powered by a 2600 mAh battery, it delivers up to 25 h of angle measurement. Rugged and reliable, it meets IP54 standards and operates from –10 °C to +50 °C in high-humidity field conditions.
